Initial Situation

Demanding applications such as radar signal processing and automotive measurement technology require deep FPGA, hardware, and embedded expertise, as well as early access to new AMD technologies. AMD Premier Partner status requires a comprehensive corporate audit, current technical certification, and close collaboration with AMD.

View through a car windshield with measurement points, parked cars, and a triangular traffic sign in the foreground.

Project Overview

Client
AMD

amd epp premier

Sector
Automotive & Measurement Technology

Solution
AMD Premier Partner since 2003.

System Environment
AMD Zynq UltraScale+, Versal Edge, Alveo U55C.

Services
PCB design, firmware & FPGA logic, NOC, AIE vector processors, Yocto Linux, kernel drivers.

The SCS Contribution

As an AMD Premier Partner, SCS covers the entire development cycle on AMD platforms—from printed circuit boards and firmware to vector processors and Linux drivers—implementing them in concrete automotive and measurement technology projects.

Premier design services

SCS qualified as an AMD Premier Partner through a comprehensive corporate audit, receives priority technical support and early access to new technologies, and maintains AMD technical certification.

Radar Algorithm on FPGA Architecture

SCS implemented, optimized, and tested the ZF radar algorithm on AMD Zynq UltraScale+. The 192-channel 4D radar achieves approximately 16x resolution and a 350 m range for automated driving.

Automotive Measurement Technology

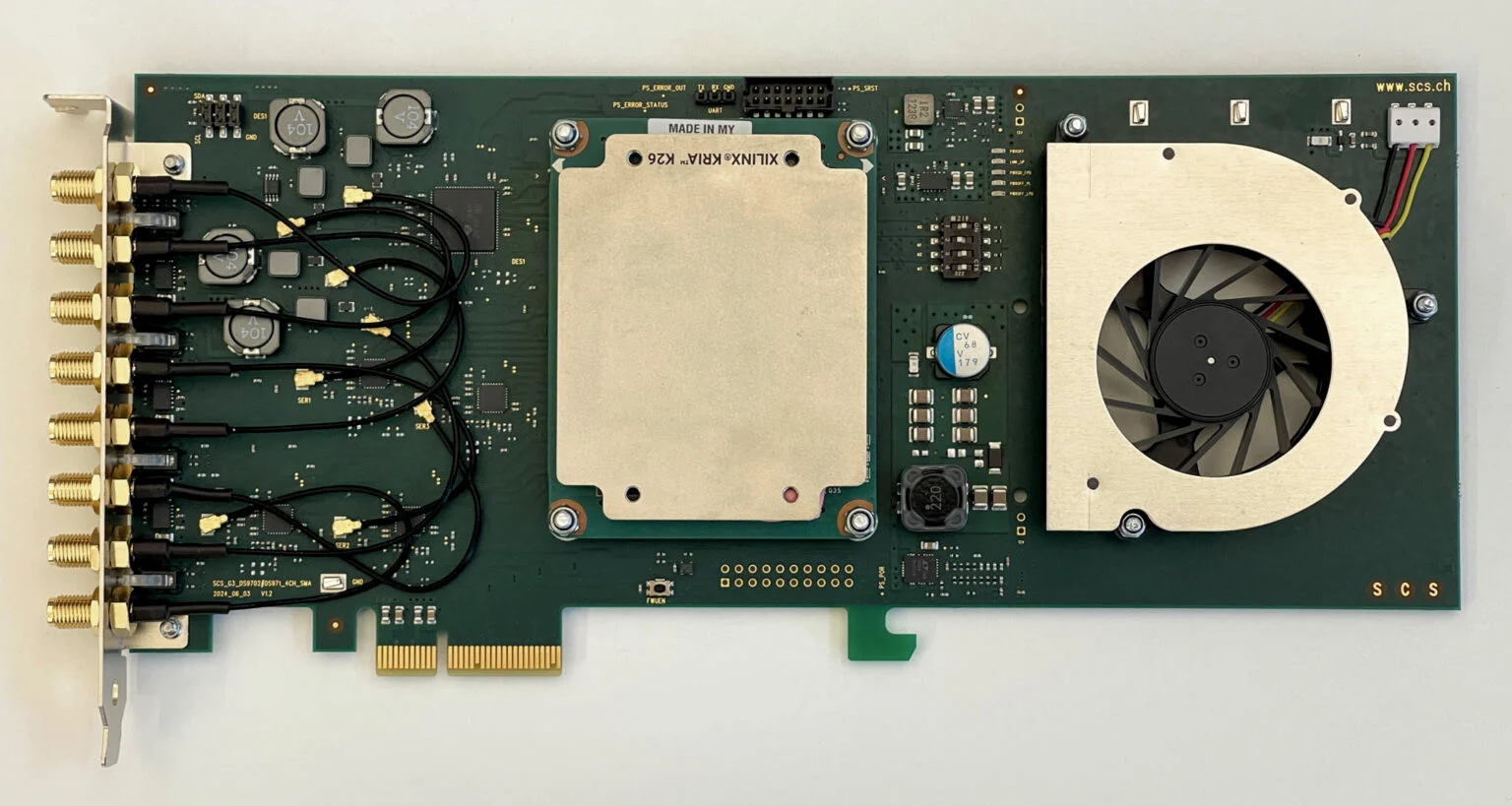

With SCS measurement cards, raw data from cameras, radar sensors, and control units can be captured, stored, and replayed with an accuracy of less than 10 microseconds, extending to virtual test drives via feedback into the control unit.

Broad AMD Service Spectrum

SCS works across the entire AMD spectrum, from radar demonstrators on the Versal Edge platform with vector processors to the AMD Alveo U55C Data Center Accelerator Card for maximum computing power with low power dissipation.

Messkarte Xylinx Kria e1735986637772

Result

As an AMD Premier Partner since 2003, SCS combines years of automotive experience with early access to new AMD technologies. As early as 2013, SCS developed a stereo camera for a client that enabled a vehicle to drive autonomously for over 100 kilometers on an overland route.

Since 2003

AMD Premier Partner (Xilinx).

192 channels

16x resolution of typical vehicle radars.

Under 10 µs

Accuracy in capturing and replaying raw data.

Services Utilized

FPGA Engineering

Electronic Hardware

Embedded Software

Automotive & Measurement Technology

A smiling man with short gray hair in a dark sweater, standing in front of light curtains, using SCS Contact.

Your Contact Person

Felix Eberli

Embedded Systems & Automotive
+41 43 456 16 00

For questions regarding FPGA development on AMD platforms, radar signal processing, and automotive measurement technology.
